This m/c is against the large work piece which is not suitable to hang for handling or large but thin ribs work piece those are deposited on the rotating table at low speed, meanwhile, the work piece. surface will be shoted steel ball by shot wheelabrators in hi-speed and continuously, after then, the casting sand, scaling& burring etc, which adhesived on the work piece surface will be cleaned in short time, the processed work piece will be shined & burnished and convenient for next step rocesings.
This m/c can be installed special fixtures tohandle long profile work iece as fig shown, Especially, which can be employed for spring to shot peening use.


Typical applications


As fig shown, this m/c can be installed the special fixture to make shot peening for springs

Sorry, no information

Model	CH-105-1	CH-105-2	CH-105-3
Max. load capacity	800kg	1,000kg	1,200kg
Max. load height	700mm	700mm	900mm
Working table dia.	1,300mm	1,500mm	1,700mm
No, of wheelabrator	2	2	3
Shoting power	7-1/2HPx2	7-1/2HPx2	7-1/2HPx3
Working table driving power	1HP	1HP	2HP
Elevating shot power	1HP	1HP	1HP
Dust collecting power	2HP	2HP	2HP
Used floor space(LXW)	3m²	3m²	4m²
N.W.	2,000kg	2,500kg	3,000kg
We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice. Machine made available on request.

Sorry, no information

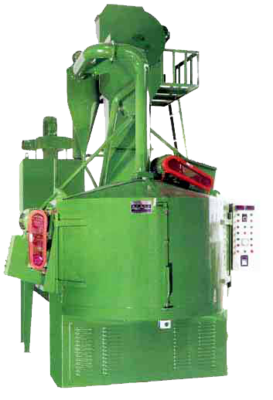

ROTATING TABLE SHOT BLASTING M/C

Model: CH-105 Classify: New Products / SHOT BLASTING M/C
